XCMG Truck Crane QY25K5-I

Product Categories

Shanghai Bomar Industrial Co.,Ltd

Contact Now

Name: XCMG Truck Crane QY25K5I
Brand: XCMG
Price: 1 USD

Place of Origin : China

Brand Name : XCMG

Certification : CE, ISO9001

Model Number : QY25K5-I

MOQ : 1 set

Packaging Details : Bulk Vessel & Roll on/off vessel

Delivery Time : 30 days

Payment Terms : T/T or L/C at sight

Contact Now

Dimension	Unit	QY25K5-I
Overall length	mm	12300
Overall width	mm	2500
Overall height	mm	3350
Weight
Total weight in travel	kg	31750
Front axle load	kg	6550
Rear axle load	kg	25200
Power
Engine model		SC8DK280Q3	WD615.329
Engine rated power	kW/(r/min)	206/2200	213/2200
Engine rated torque	N.m/(r/min)	1112/1400	1160/1400
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	22
Min. ground clearance	mm	260
Approach angle	°	16
Departure angle	°	13
Max. grade ability	%	40
Fuel consumption for 100km	L	≈37
Main performance
Max. rated total lifting capacity	t	25
Min. rated working radius	mm	3000
Turning radius at turntable tail	m	3.065
Max. lifting torque	kN.m	961
Base boom	m	10.4
Fully extended boom	m	39.5
Fully extended boom+jib	m	47.8
Longitudinal outrigger span	m	5.14
Lateral outrigger span	m	6
Working speed
Boom luffing time	s	68
Boom full extension time	s	150
Max. swing speed	r/min	2.5
Max. speed of main winch (single rope) (no load)	m/min	125
Max. speed of aux. winch (single rope) (no load)	m/min	125

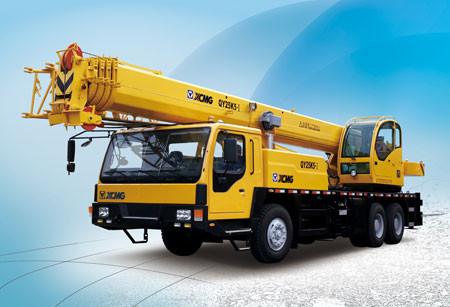

XCMG Truck Crane QY25K5-I Images
